Socket Weld Flange

Socket-weld pipe flanges are typically used on smaller sizes of high-pressure pipes. These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe.

Socket weld flange simplified as SW flange, it has a recessed area (like a shoulder) in the flange bore, this shoulder serves as a guide to set the depth of the pipe that inserted to the flange. Socket welding flange initially designed for high pressure small diameters piping system.

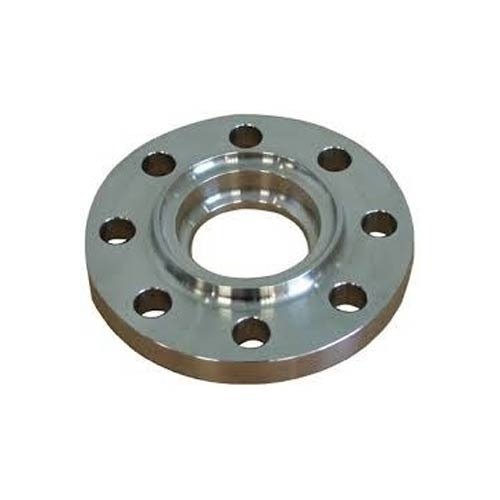

socket-weld-flanges-500x500

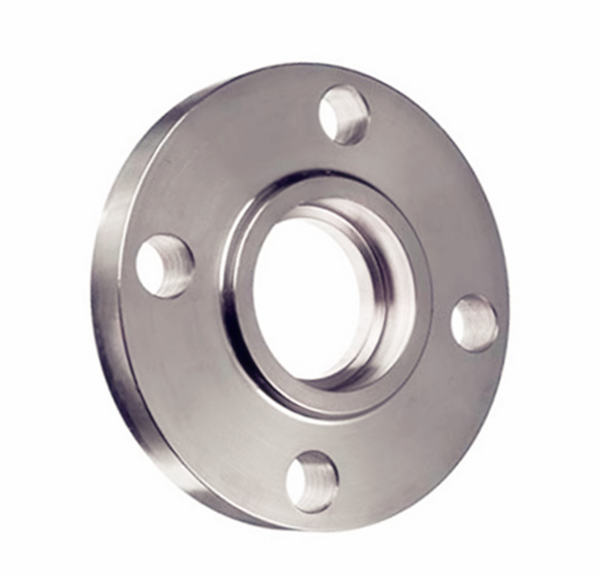

socket-weld-flanges-1612774492-5717592

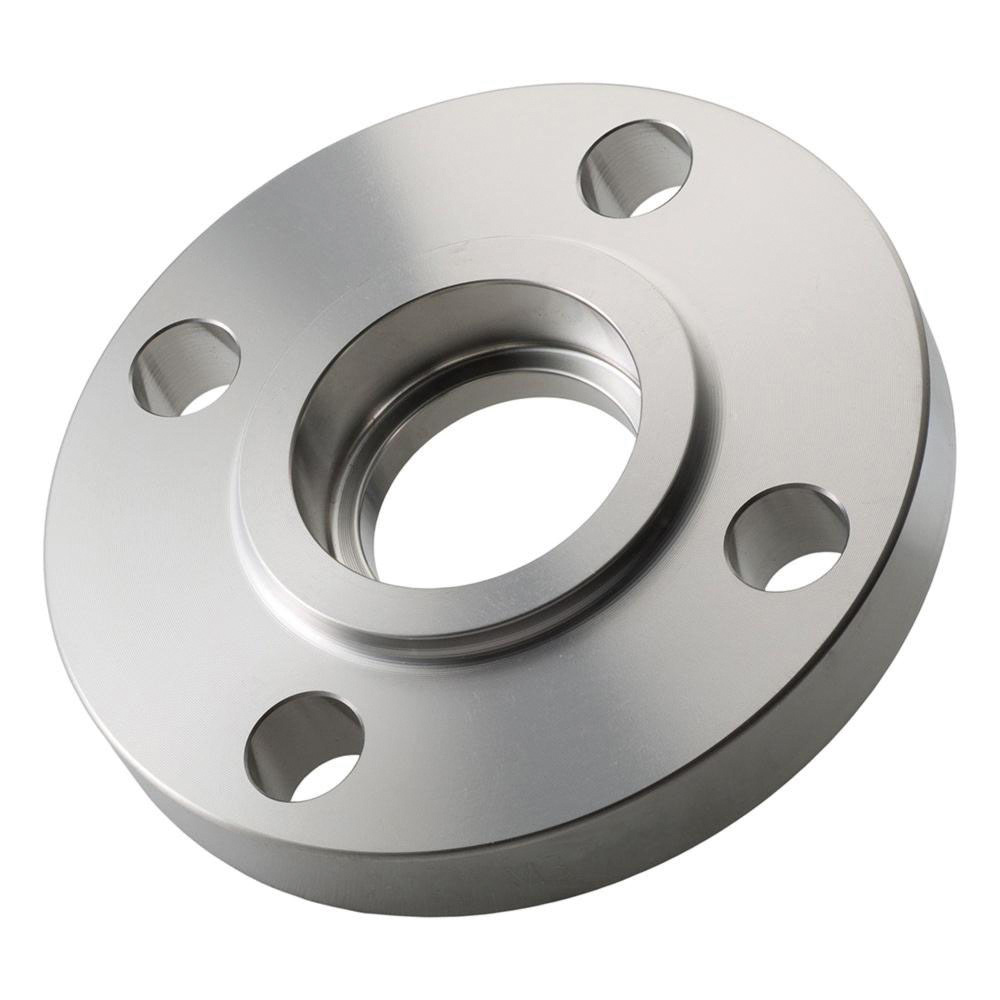

A.6.6Socket-Weld-Flanges.jpeg389

Product Specification

Type of Material

Socket Weld

Standard We Offer

ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Available size

1/8″~4″ (DN6~DN100)

Pressure of Product

3000LBS, 6000LBS, 9000LBS

Stainless steel Grade

ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L

Super Duplex steel Grade

S32750

Duplex steel Grade

ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

Carbon steel Grade

ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91

Alloy steel Grade

ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.

Nickle Alloy steel Grade

Nickel Alloys 200, Nickel Alloys 201

Product Details

Anvil Metal Corporation is one of the largest exporters, manufacturers, and suppliers of Socket Weld Flanges in India. Smoothbore circumstances can be effortlessly accomplished by crushing the inner weld. Thus, Socket Weld Flanges were industrialized for use on minor size of superior pressure piping. By means of an interior weld, socket weld flanges are sturdier and have better fatigue power than double welding a slip-on flange. Our offered range is widely appreciated for its dimensional accuracy and sturdy construction, and our range can be availed in different specifications.
