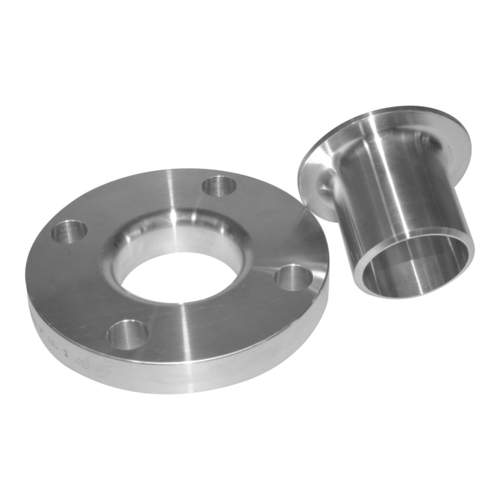

A lap-joint flange is a two-component assembly, with a stub end that has a lap-joint ring flange placed over it. The stub end is then butt welded to the pipe, and the flange ring can be rotated to align with the mating flange. This type of flange connection is particularly useful for large or hard-to-adjust flanges. The lap joint flange can be used in sizes and pressure classes similar to that of a weld-neck flange.
Lap Joint pipe flanges are often used for applications that require frequent dismantling. Lap joint pipe flanges slide directly over the pipe and are most commonly used with stub end fittings. A pipe is usually welded to the Stub End and the Lap Joint pipe flange is free to rotate around the stub end. The benefit of this is that there will not be any issues with bolt hole alignment.
Weld Neck, Threaded, Slip-On, Socket Weld, Lap Joint, Blind, Orifice Flange, Orifice Plate and Restriction Orifice Plate, Spectacle Blind, Spacer, Blanks
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
1/2″ (15 NB) to 48″ (1200NB)
Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)
Anvil metal Corporation is a expert manufacturer and exporter of stainless steel lap joint flanges with precision machining facilities. We produce stainless steel lap joint flanges as per ANSI B16.5, DIN Standard and EN1092-1 in size range of 1/2” to 60” NPS. The lap joint flange has a similar structure with slip on flange and similar dimensions too. However, lap joint flanges are no longer widely used in high pressure conditions, however it is usually suitable for piping structures where the assembly and disassembly of the pipeline is frequent. We produce flanges in carbon steel, stainless steel, high nickel alloys, duplex/super duplex, copper nickel, titanium and different alloys.
